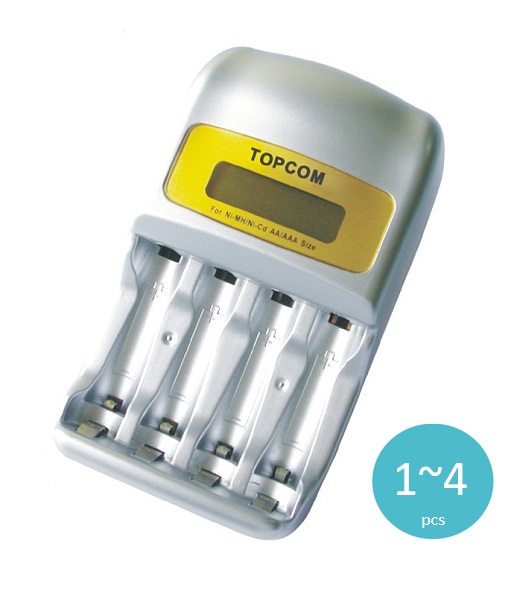

QC-1200 LCD Quick Charger for AA/AAA Ni-MH rechargeable batteries
- Charging current: 2000 mA Max.
- LCD Rapid Battery Charger
- For 1~4pcs AA /AAA Ni-MH Battery
- Charging current: 2000 mA Max.
- LCD Rapid Battery Charger
- For 1~4pcs AA /AAA Ni-MH Battery
產品說明
Feature
QC-1200 Ni-MH battery quick charger is a new generation designed, developed to meet the demand of power solution for modern consumer electronic products like digital camera, digital music players, radios, radio controlled cars and electronic toys and all other high draining electronic and electrical devices which are normally powered by rechargeable AA or AAA batteries.
Built-in smart microprocessor allows charging different brands and capacity batteries at the same time and reaching full charge within a short time. It will not cause any bad effect as removing some of batteries individually from the charger while charging. Unique design of “wrong battery” detection for safe charge. The LCD displays the power capacity and charging status. Easy and convenient!
Built-in smart microprocessor allows charging different brands and capacity batteries at the same time and reaching full charge within a short time. It will not cause any bad effect as removing some of batteries individually from the charger while charging. Unique design of “wrong battery” detection for safe charge. The LCD displays the power capacity and charging status. Easy and convenient!
Electrical spec.
|
Items
|
Specification | Comment | ||
| Input power supply |
Voltage: 100-240VAC | Rating spec | ||
| Frequency: 50-60Hz | No load | |||
| Power consumption: ≦2.2W | ||||
| Output voltage and current | Voltage: DC1.5V | |||
| Current: DC2000mA |
AA*1: 2000mA | |||
| AA*2: 1000mA | ||||
| AAA*1: 1100mA | ||||
| AAA*2: 550mA | ||||
| Applicable battery | Ni-MH and Ni-Cd battery | |||
| Charge time |
AA (2300mAH) *1 | 1.1 hour | |
|
| AA (2300mAH) *2 | 2.3 hours | |||
| AA (2300mAH) *3 | 3.5 hours | |||
| AA (2300mAH) *4 | 4.5 hours | |||
| AAA (850mAH)*1 | 0.8 hour | |||
| AAA (850mAH)*2 | 1.5 hours | |||
| AAA (850mAH)*3 | 2.3 hours | |||
| AAA (850mAH)*4 | 3.0 hours | |||
| LCD indication |
1. During charge……Flashing battery icon. The more segments displays, the greater the battery charged. 2. Full charge……….Solid full battery icon. 3. Wrong battery……Flashing full battery icon. |
|||
Product Main Features
1) Wide LCD display with 4 levels for charging status.2) Monitored charging channels for charging 1 to 4 pcs AA/AAA Ni-MH/Ni-Cd rechargeable batteries.
3) Charge different brands and capacity of AA or AAA Ni-MH/Ni-Cd batteries at the same time.
4) Channel- temperature control and voltage monitor for safe charging.
5) Smart 12 bits Microprocessor to increase rechargeable battery lifespan.
6) Specific functions of high accurately +△V, -△V, 0△V voltage detection for fully charge.
7) Overcharge and overheat protection. Efficient and safe!
8) Wide LCD display for charging status. The LCD shows the individual capacity of each battery when charging and full charge. The number of segment indicates the capacity of battery power containing.

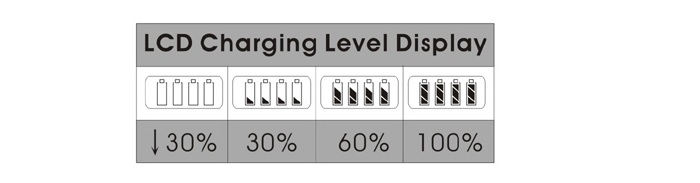

LCD displays the charging levels
1.Empty icon: lower than 30%
2.One segment: around 30%
3.Two segments: around 60%
4.Full icon: 100%
10) Detective function for “primary batteries” such as alkaline, carbon zinc batteries or “damaged batteries”.
11) Conform to the international safety requirement.
12) Automatically trickle charge after full charge.
Mechanical Specification
| No | Item |
Spec
|
Unit
|
Comment |
| 1 | Front cover | ABS | － | 94V-0 |
| 2 | Base | ABS | － | 94V-0 |
| 3 | Housing dimension | 115*65*67 | mm |
|
| 4 | Housing color | Silver with gray | － | |

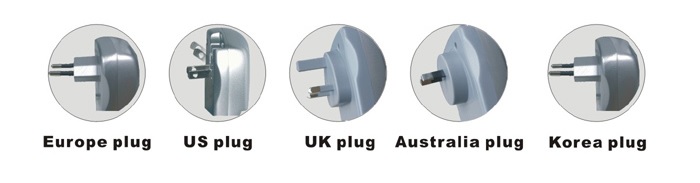

| 5 | Input pins | Fixed EU plug | － | |
| 6 | Weight | 97 | g |
