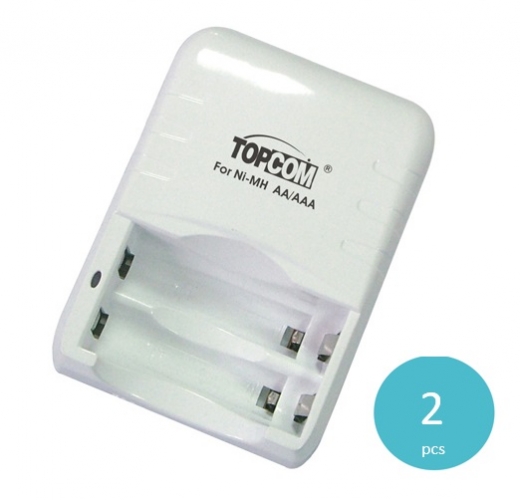

SC-290 Smart charger for Ni-MH battery
-
Input: AC 100-240V 50-60 Hz
For 2pcs AA / AAA Ni-MH Battery
Charging current: 800mA max.
-
Input: AC 100-240V 50-60 Hz
For 2pcs AA / AAA Ni-MH Battery
Charging current: 800mA max.
產品說明
The quick AA/AAA rechargeable battery charger SC-290 can charge 2pcs AA/AAA Ni-MH batteries. The built-in battery voltage detection controlled the current supply to prevent overload problem. Save money and keep your favorite electronic gadgets powered up and ready to use.
Electrical spec
|
Items
|
Specification
|
Comment
|
|
Input power supply |
Voltage: 100-240VAC
|
Rating spec
|
|
Frequency: 50-60Hz
|
|
|
|
|
Power consumption: ≦2.2W
|
No load
|
|
Output voltage and current
|
Voltage: DC2.82V
|
|
|
Current: DC 800 mA max.
|
|
|
|
Applicable battery
|
Ni-MH battery
|
|
|
Charging indication light |
1. No battery…………green light.
2. During charge….….red light. 3. Finish charge…...…green light. |
|
Product Main Features
1. Worldwide input voltage AC100-240V. for easy using in traveling, in house and office.
2. One charging channel for 2 pcs AA /AAA Ni-MH rechargeable batteries at the same time
3. Current supply control by voltage detection to prevent overload.
4. Build in activate battery function / pre-charging function.
5. One dual led indicator.
6. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
7. Automatically trickle charge after full charge.
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
|
|
2
|
Back cover
|
ABS
|
－
|
|
|
3
|
Housing dimension
|

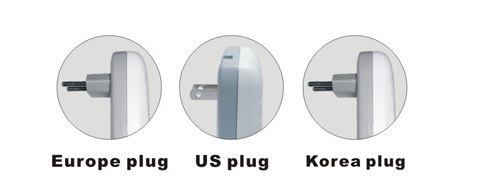

Foldable US plug : 90 x 65 x 27
Fixed EU plug : 90 x 65 x 61 |
mm
|
|
|
4
|
Housing color
|
White color /Black color
|
－
|
|
|
5
|
Weight
|
85
|
g
|
Without battery
|
