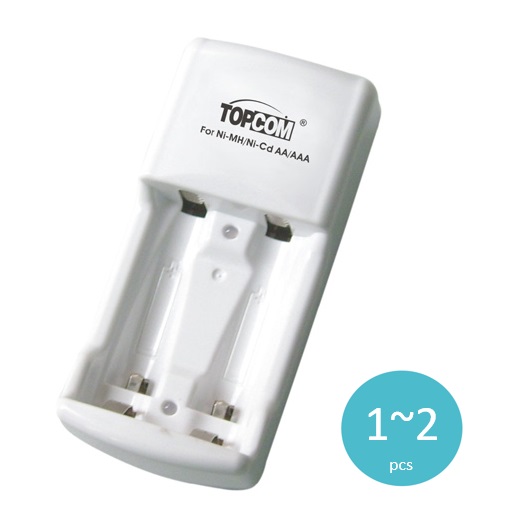

SC-218 1or 2 pcs Ni-MH battery charger
-
Input: AC 100-240V 50-60 Hz
-
For 1~2pcs AA / AAA Ni-MH Battery
-
Charging current: 200mA max.
-
Input: AC 100-240V 50-60 Hz
-
For 1~2pcs AA / AAA Ni-MH Battery
-
Charging current: 200mA max.
產品說明
Topcom SC-218 Ni-MH battery charger which is easy to carry with fashionable and modern designed appearance. Build in two charging channels for 1or 2 pcs AA /AAA Ni-MH rechargeable batteries at the same time.
Electrical spec
|
Items
|
Specification
|
Comment
|
|
|
Input power supply |
Voltage: AC 100-240V
|
Rating spec
|
|
|
Frequency: 50-60Hz
|
|
||
|
|
Power consumption: ≦0.6W
Power consumption: ≦3.5W |
No load
Load |
|
|
Output voltage and current
|
Voltage: DC 1.5 V
|
|
|
|
Current: 200 mA max.
|
|
||
|
Charging time
|
AA (2000mAH) *2
|
Around 10 hours
|
depending on the resistance of battery
|
|
AAA (800mAH)*2
|
Around 5.0 hours
|
||
|
Applicable battery
|
Ni-MH / Ni-Cd rechargeable battery
|
|
|
|
Charging indication light |
1. No battery…………green light.
2. During charge….….red light. 3. Finish charge…...…green light. |
|
|
Product Main Features
1. Worldwide input voltage AC100-240V. for easy using in traveling, in house and office.
2. Two charging channels for 1or 2 pcs AA /AAA Ni-MH rechargeable batteries at the same time
3. Current supply control by voltage detection to prevent overload.
4. Build in activate battery function / pre-charging function.
5. Two dual led indicators.
6. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
7. Automatically trickle charge after full charge
2. Two charging channels for 1or 2 pcs AA /AAA Ni-MH rechargeable batteries at the same time
3. Current supply control by voltage detection to prevent overload.
4. Build in activate battery function / pre-charging function.
5. Two dual led indicators.
6. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
7. Automatically trickle charge after full charge
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
|
|
2
|
Middle cover
|
ABS
|
－
|
|
|
3
|
Base
|
ABS
|
－
|
|
|
4
|
Housing dimension
|
US: 110(L) * 45(W) * 28(H)
EU:110(L) * 45(W) * 62(H) |
mm
|
|
|
5
|
Housing color
|
injection white top casing with gray base
|
－
|
|
|
6
|

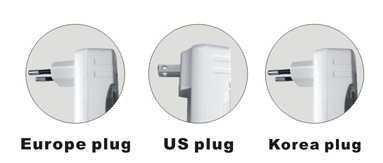

Input pins
|
Foldable US plug or Fixed EU plug
|
－
|
|
|
7
|
Weight
|
75
|
g
|
For charger only
|
